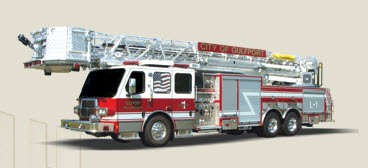

E-ONE HP 100 Platform Aerial

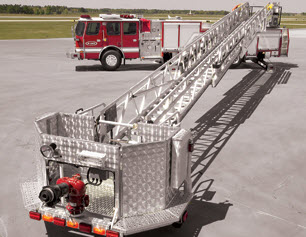

Platform:

• Platform rated for 1000-lbs. of personnel plus 305-lbs. of equipment without water flowing. Perimeter step with angled front corners delivers easier access to structures. A 1250-GPM monitor is standard, dual monitors are optional.

Cab:

• 3/16" Aluminum plate welded over the extruded-aluminum structural frame exceeds the requirements of regulation #ECE-29 for occupant protection.

Pump Operator's Panel:

• Ergonomic layout and color-coded pump panel tags create an efficient means to control pumping operations. The side-out pump opperator's platform features ball bearing-free slides for long life in harsh elements.

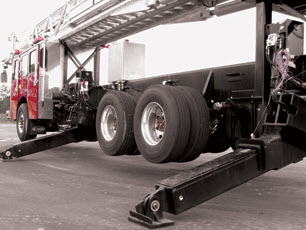

Stabilizers:

• Crisscross under-slung outriggers can be deployed in less than 45 seconds. And with only a 15' 6" spread, the unit requires even less side-to-side room to setup than a 75' ladder.

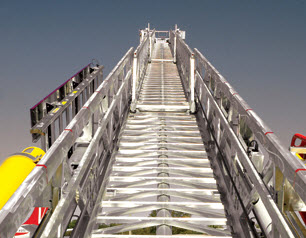

Aerial:

• Three-section aluminum aerial provides a 100' vertical reach and 91' 6" horizontal reach. Ladder has a 2.5 to 1 structural safety factor, which exceeds the minimum NFPA requirement of 2 to 1.'

Travel Height:

• Low 11' 10" overall travel height with standard cab.

Ground Ladders:

• Enclosed rear tunnel allows for storage of up to 182' of ground ladders.

Fire Fighting Package:

• Up to 2000-GPM pump with a 300-gallon water tank. Multiple handline and discharge options as well as Class-A foam systems are available.
