Marque Type III Commando

The Commando Type III model for Marque ambulancescomes it different wheel bases which determine the different chassis options available.

Body Features

• Modular Body: Fully welded roll cage design, 2″ x 2″ tubular structure on 12” centers for strength and durability
• “BAR” Roof
• Innovator of the “Side Impact Beam”
• Independent Aluminum Bulkhead
• Rear Bumper: Entire bumper assembly hinged to allow bumper to tilt up in high angle departure situations
• Crowned roof to inhibit water pooling
• Oxygen Storage: Streetside front compartment with adjustable steel rings for M-size cylinder
• .125 Body Side Skin: For added strength and a smooth seamless finish
• Compartments: Aluminum diamond plate construction
• Rubrails: Aluminum diamond plate style rubrails

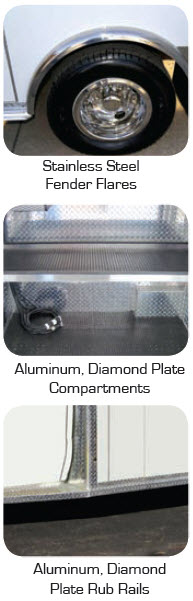

• Fender Flares: Stainless Steel
• Marque “exclusive” LED corner lights

Door Features

• Latches: TriMark automotive style
• Extruded door jams: Heavy duty, key locked and fully welded for improved fit
• Extruded/Pan Hybrid doors: Heavy duty, key locked with .125 pan formed skin for enhanced strength and improved finish
• Integrated Door Seal: Reduces wear on seal and eliminates outer contamination of doors, compartments and module
• Door Liners: Attached with 10-24 stainless steel screws into aluminum rivnuts for service accessibility

Environmental Features

• A/C – Heater System: Ducted system with ceiling vents; 650 CFM blower unit, 35,000 BTU heat, 32,000 BTU cooling
• Thermostat: Fully automatic in action area
• Insulation: Fiberglass batts in ceiling / walls, block foam in doors (spray foam optional)
• Power Vents: Marine style with three (3) speed fans

Warning Lights & Siren Features

• Flasher: Vanner Solid State
• Siren: Siren controls located in front console
• Siren speakers: Two (2) 100-watt drivers
• Warning Lights: Whelen Perimeter Lighting
• Scene Lights: Whelen 900 Series – Two (2) per side
• Load Lights: Whelen 900 Series – Two (2) above the rear doors
• Back Up Alarm: 97Db with momentary cutoff

Interior Features

• Dome Lights: Eight (8) Dual Filament, Incandescent, two rows of four (4), switched separately
• Spotlight: One (1) 400,000CP hand-held light with momentary switch
• Cot Mount: Ferno-Washington 175-4
• Flooring: Lon Seal “Lon plate II”
• IV Holders: Two (2) dual, swing down rubber holders with Velcro retaining straps
• Aspirator: Rico RS-4X disposable
• O2 and Vacuum Outlets: Three (3) oxygen outlets and one (1) vacuum outlet in action area
• Technician’s Seat: High-back automotive style seat with swivel base
• Laminate: Post Form Grade Interior
• ALS Cabinet: Storage for trauma kits
• Upholstery: Seamless cushions

Power Distribution/Electrical Features

• Etched-trace power circuits: HD-3 oz. For increased service life
• Etched-trace control circuits: HD-3 oz. For dependable service
• Marine Grade High Current Switches: Replaceable, for milliamp circuit, to improve switching dependability.
• Door Open Circuits: Magnetic/LED diagnostic circuit to reduce current drain
• HD Machine Crimped Harness: Pull and load tested to provide a rugged dependable network
• Shoreline: 115-volt 20amp
• Electrical Outlets: Three (3) 125V GFI protected; Two (2) 12V outlets in module
